Fit for:

This item fits:   Universal Application ( Modification might be required for some vehicles )
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Maximum PSI 18（1.2Bar）

Specific:

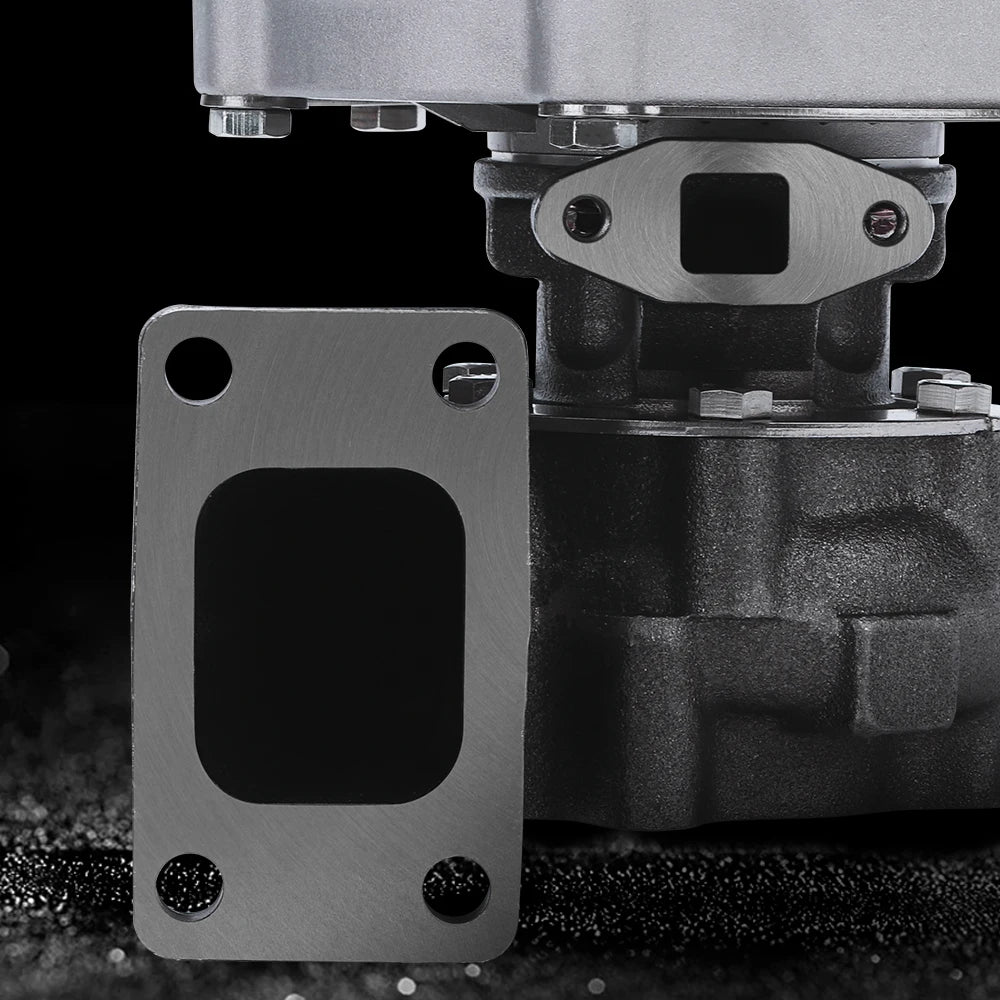

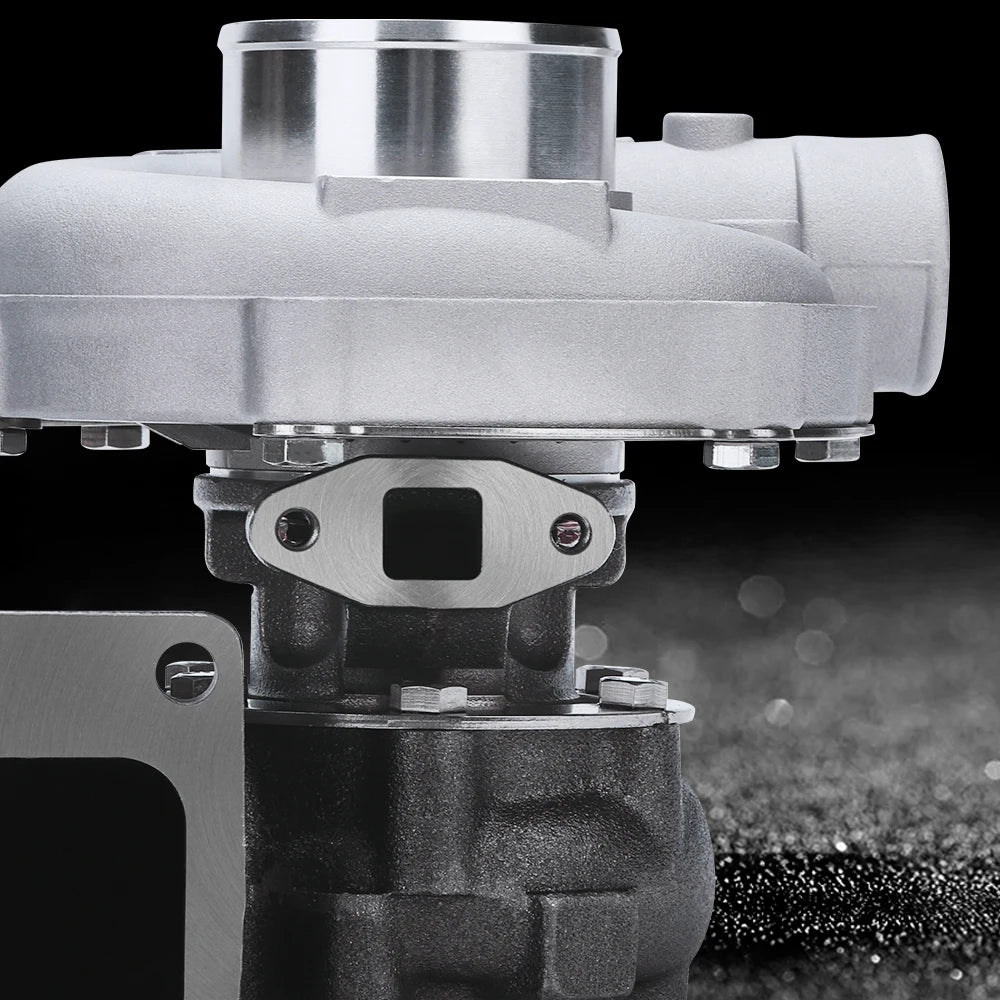

Exhaust (Turbo Manifold) Flange:   T3 T4 4 bolt Flange Patterns

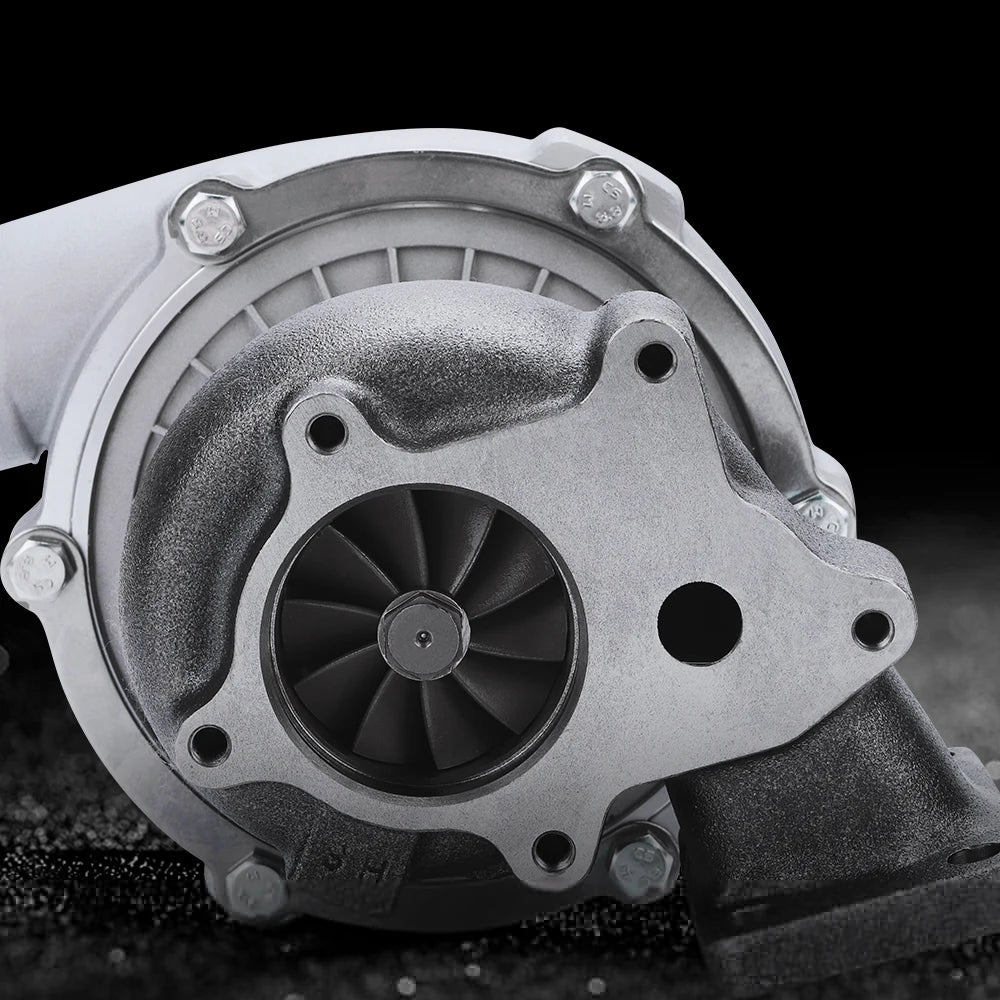

Exhaust (Downpipe) Flange:   Standard T3 5 bolt downpipe flange pattern
Cooling Type:    Oil Cooled
Wastegate:Without Wastegate

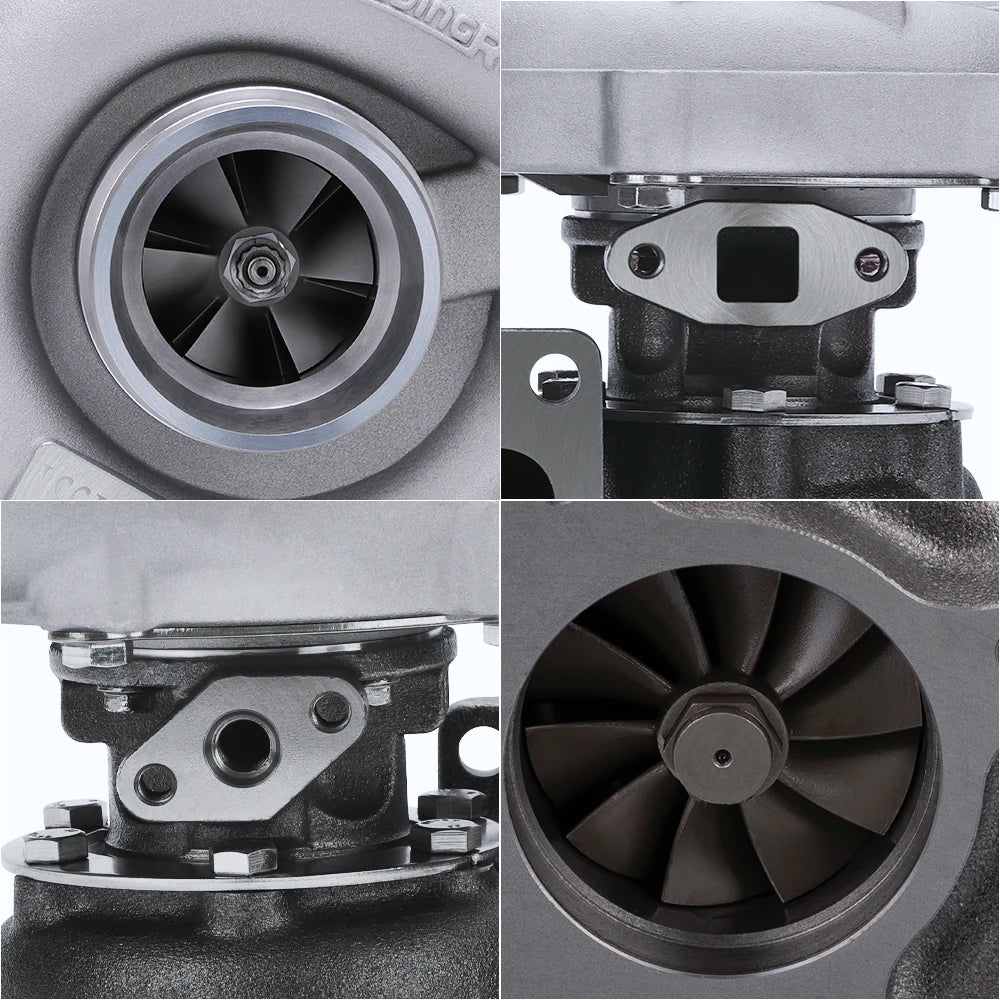

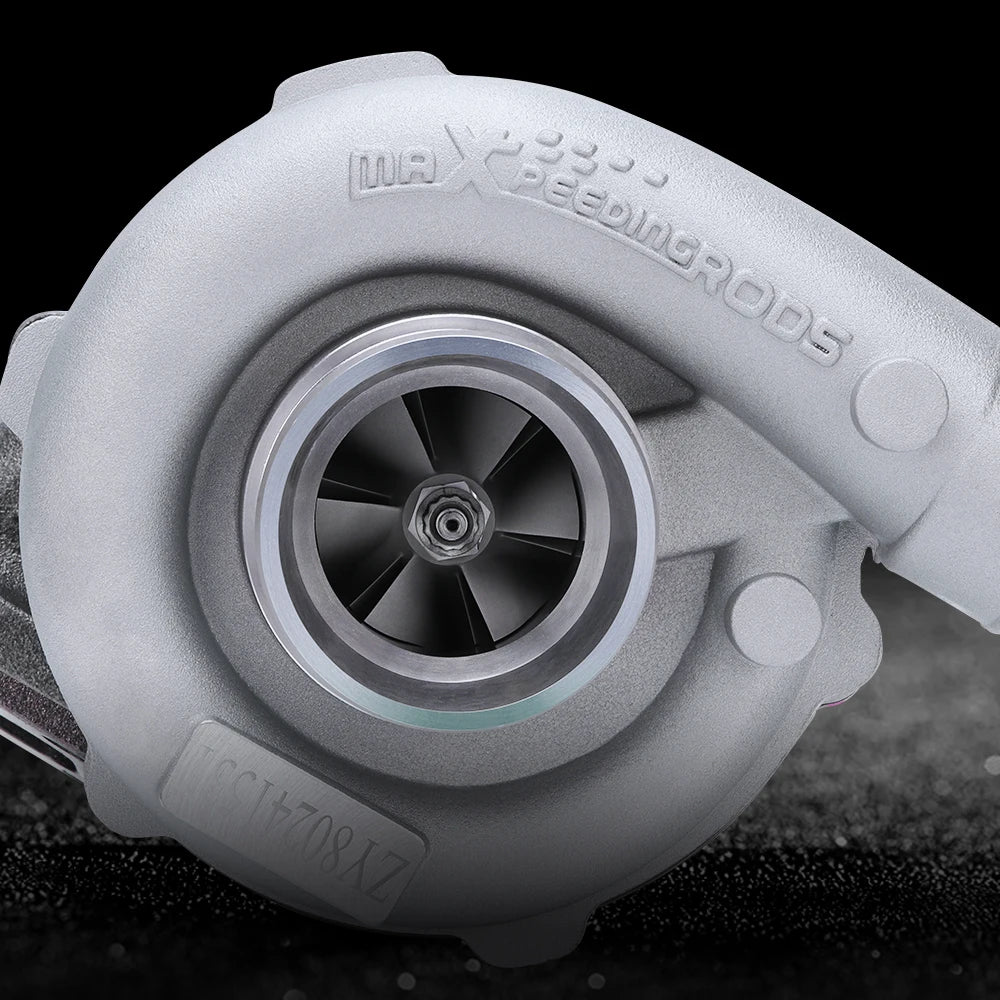

Compressor:

Trim: 44
A/R: 0.5
Inducer: 50.5
Exducer: 76

Turbine:
Trim: 73
A/R: 0.57
Inducer: 65.5
Exducer: 55.9

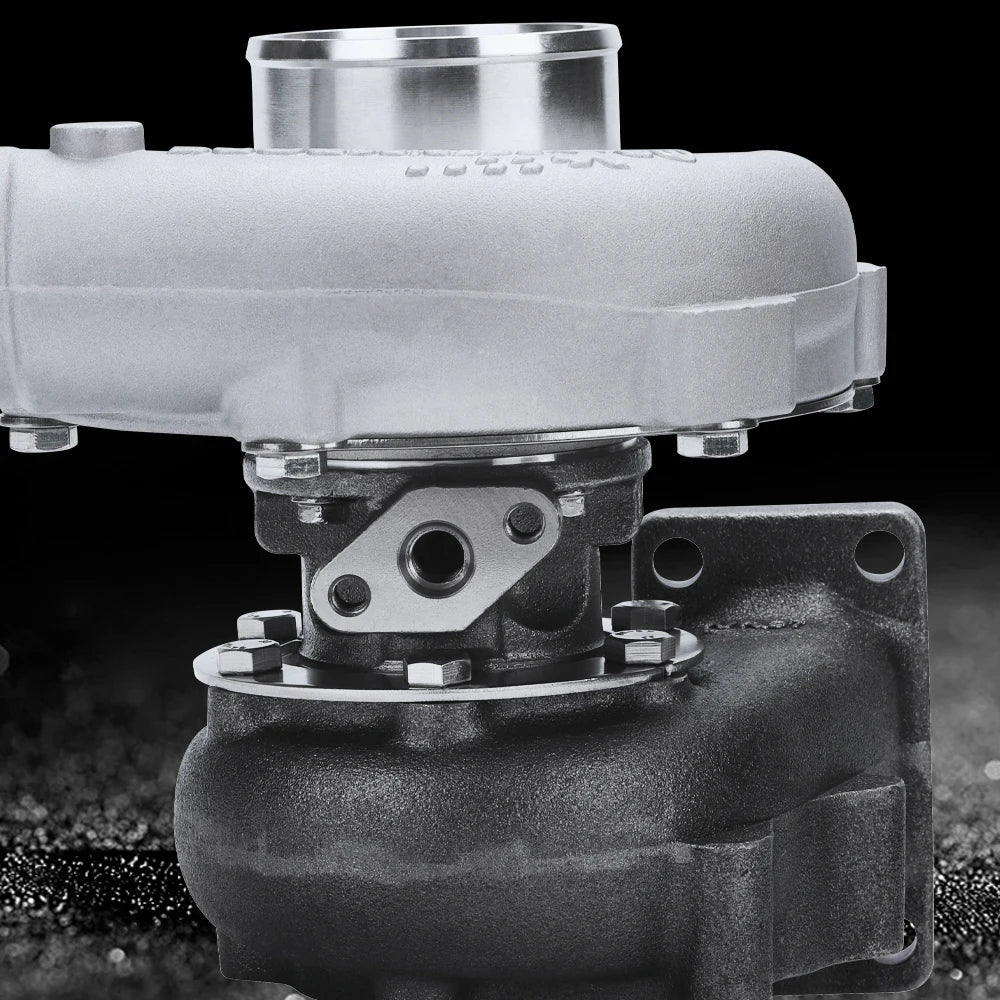

Oil Inlet: M12*1.25

Oil Outlet:2*M8*1.25

Condition:Brand New

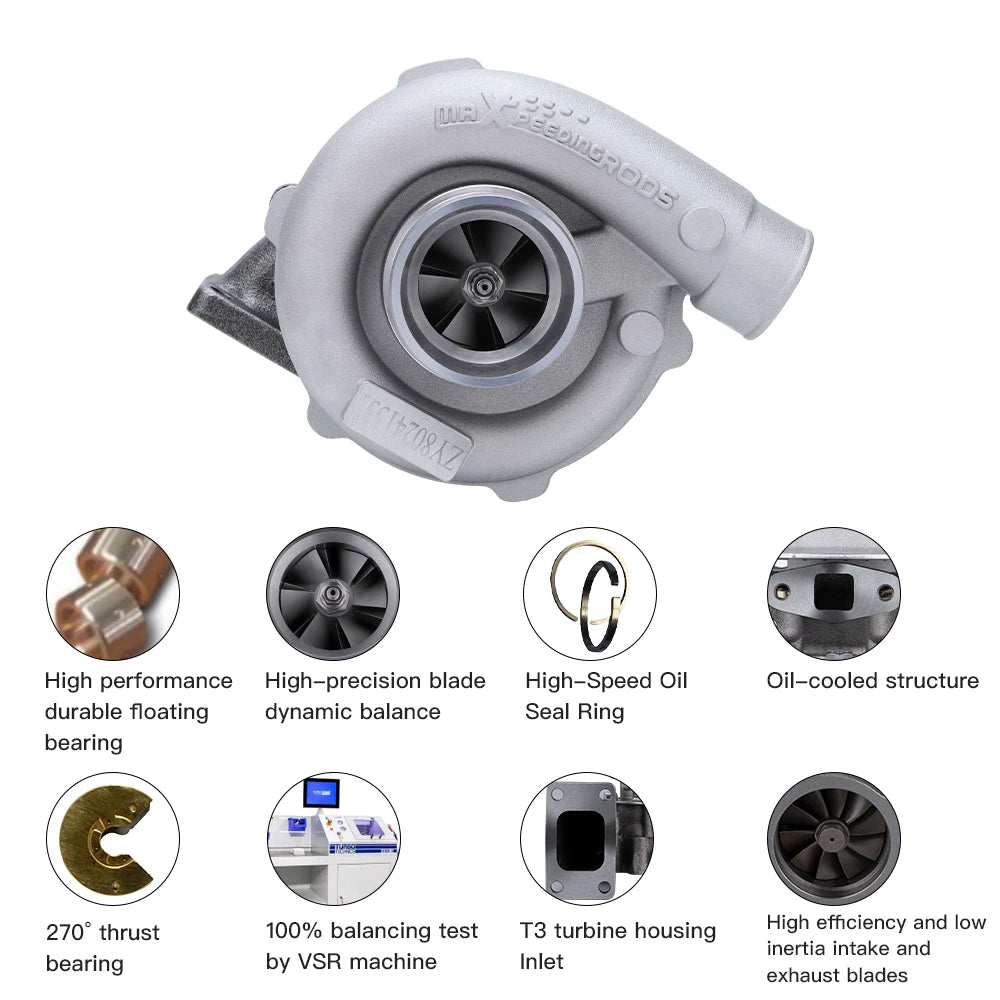

Bearing Type:Floating Bearing

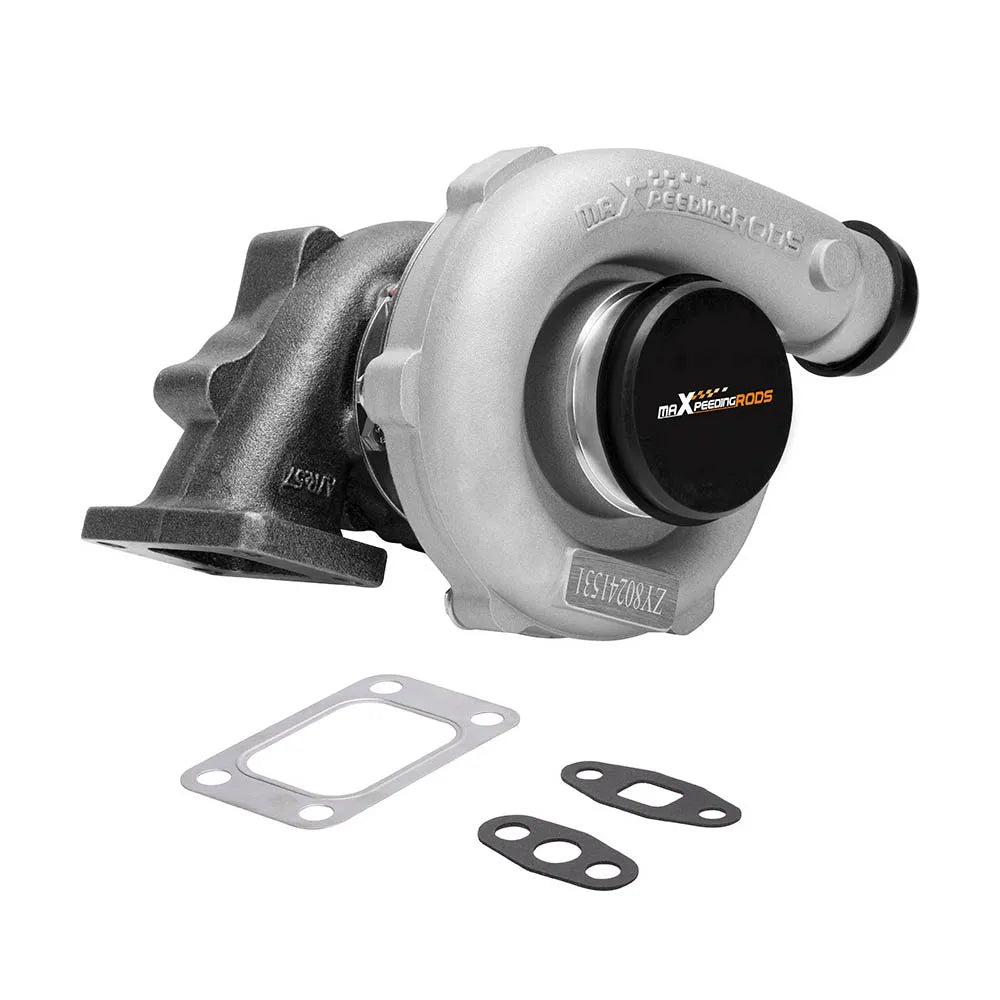

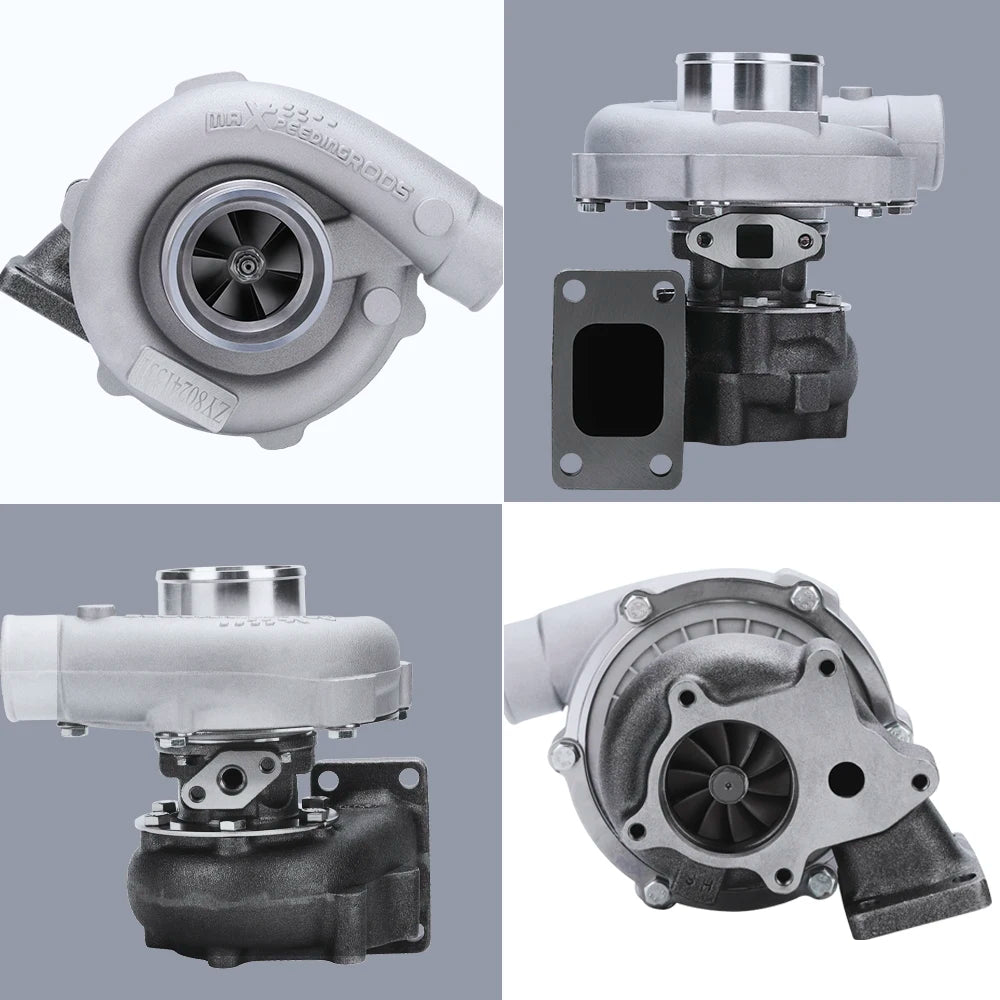

Accessories:You will get exactly as shown in the picture above

Key Features:

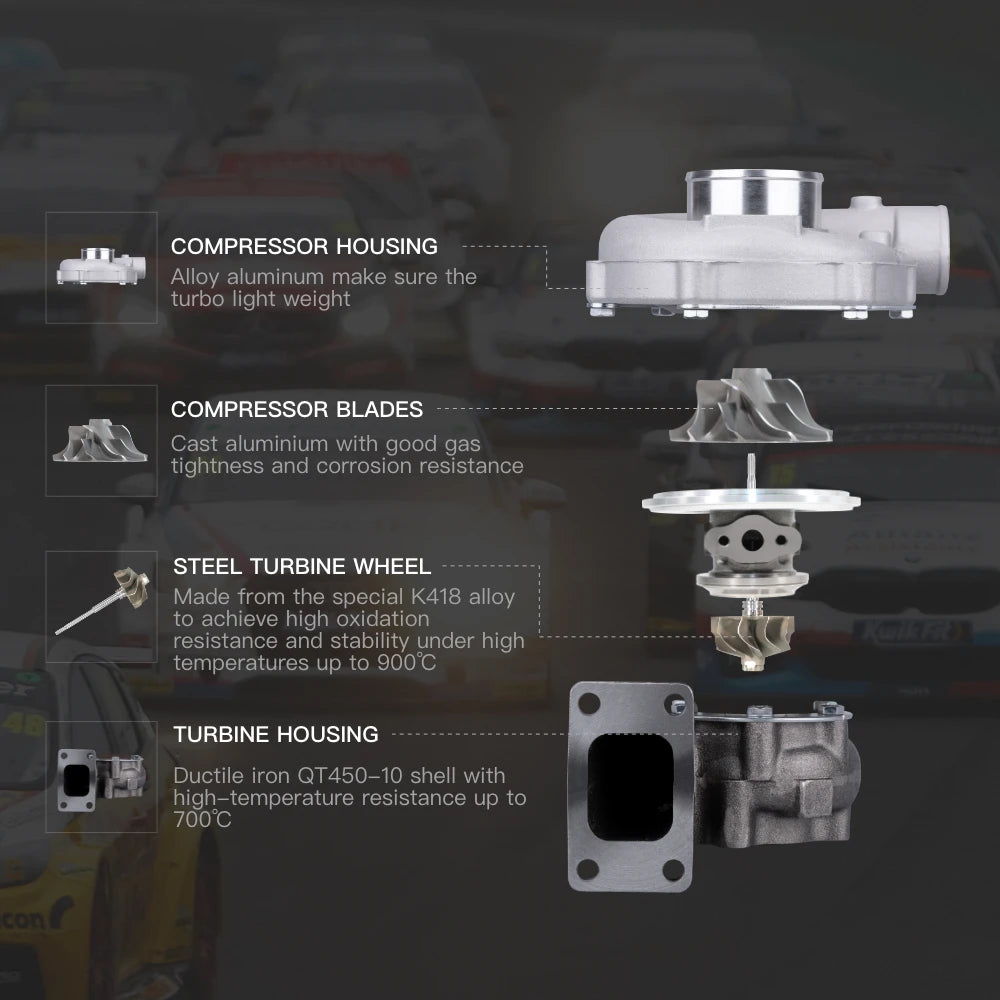

* High Quality Material, Cast Housing with Durable Steel
* Boost Engine Horsepower Significantly
* Increase Engine Power and Torque Outpout;
* Maintain Combustion Chamber Pressure and Fuel/Air Load
* Contructed with High Quality Material
* Built for Durability and Strength

Tips before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately. Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.

NOTE:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
